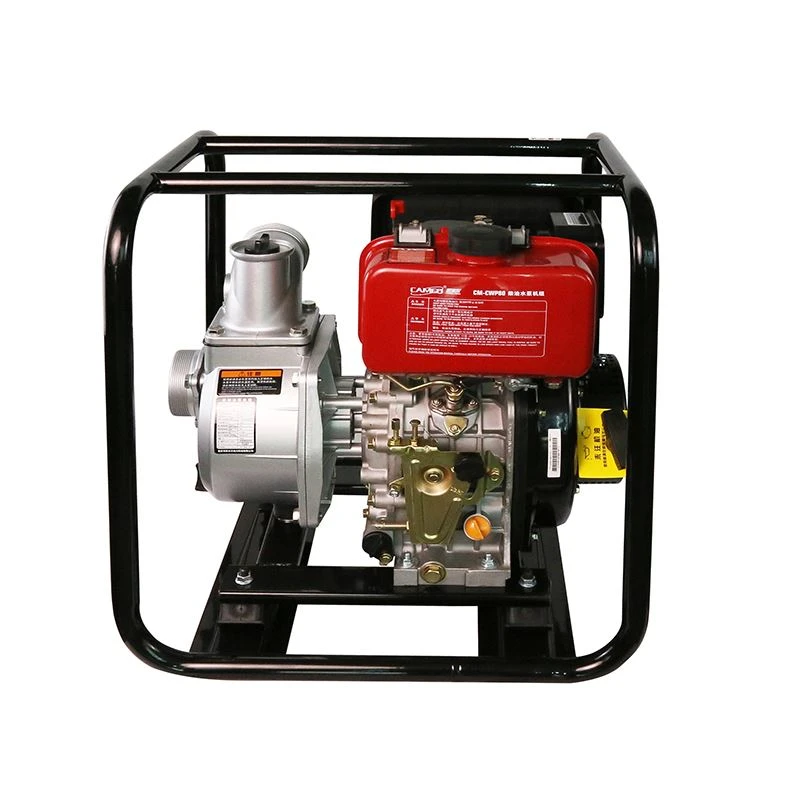

Diesel Engine Water Pump
Model: CM-CWP80
Form: Single cylinder, air cooling, four stroke
Rated flow(m³/h): 45
Rated head(m): 17
Product Introduction
|
Model |
CM-CWP80 |
CM-CWP50 |
CM-CWP100(E) |
CM-CWP150(E) |
|
Form |
Single cylinder, air cooling, four stroke |
|||
|
Max. volume of flow(m³/h) |
50 |
28 |
80 |
140 |
|
Maxmum head(m) |
21 |
26 |
32 |
18 |
|
Rated flow(m³/h) |
45 |
23 |
75 |
135 |
|
Rated head(m) |
17 |
21 |
28 |
15 |
|
Power |
CP170WF |
CP173F |
CP178F |
CP195F |
|
NPSH(m) |
≤6 |
≤6 |
≤6 |
≤6 |
|
Maximum suction height(m) |
7 |
7 |
7 |
7 |
|
Rated suction height(m) |
5 |
5 |
5 |
5 |
|
Self-prinming time(S) |
≤120 |
≤120 |
≤120 |
≤120 |
|
Discharge port diameter(mm) |
80mm(3") |
50mm(2") |
100mm(4") |
150mm(6") |
|
N.W/G.W(KG) |
30/32 |
37/39 |
60/62 |
110/112 |
|
Size(mm) |
550*440*470 |
560*475*550 |
670*530*650 |
800*580*800 |
|
Loading Q'TY(20GP/40HQ) |
275/570 |
190/400 |
100/300 |
56/180 |
Diesel engine water pumps are robust and versatile machines designed for efficiently moving water or other fluids in a variety of applications. These pumps are powered by diesel engines, making them suitable for remote locations or areas without access to electricity. With their durability, portability, and exceptional performance, diesel engine water pumps have become an indispensable tool in agriculture, construction, emergency response, and many other industries.
Product Advantage
1. Fuel Efficiency: Diesel engines are renowned for their superior fuel efficiency compared to gasoline engines. This means that diesel engine water pumps can operate for longer periods on the same amount of fuel, making them a cost-effective choice in the long run.
2. Durability: Diesel engines are built to withstand heavy-duty usage and are known for their durability. This makes diesel engine water pumps ideal for applications where continuous operation is required, such as in agriculture, construction, and emergency situations.
3. High Torque: Diesel engines produce higher torque at lower RPMs (revolutions per minute) compared to gasoline engines. This characteristic makes diesel engine water pumps well-suited for tasks that require substantial power, such as pumping water over long distances or elevating it to significant heights.
Located within the Sanhua Industrial Park in Chongqing, Chongqing Camel Power Machinery Co., Ltd. Takes great pride in its extensive workshop that spans over 50, 000 square meters. The company boasts a dedicated and highly skilled workforce consisting of over 200 professionals. What sets the company apart is its team of more than 20 experts in internal combustion engines, many of whom have received government subsidies in recognition of their exceptional contributions to the industry. Committed to delivering uncompromising quality, the company has made significant investments in five cutting-edge automated production lines and state-of-the-art online inspection equipment. These efforts have culminated in Chongqing Camel Power Machinery Co., Ltd. Achieving an impressive annual production capacity that exceeds 500, 000 units.
