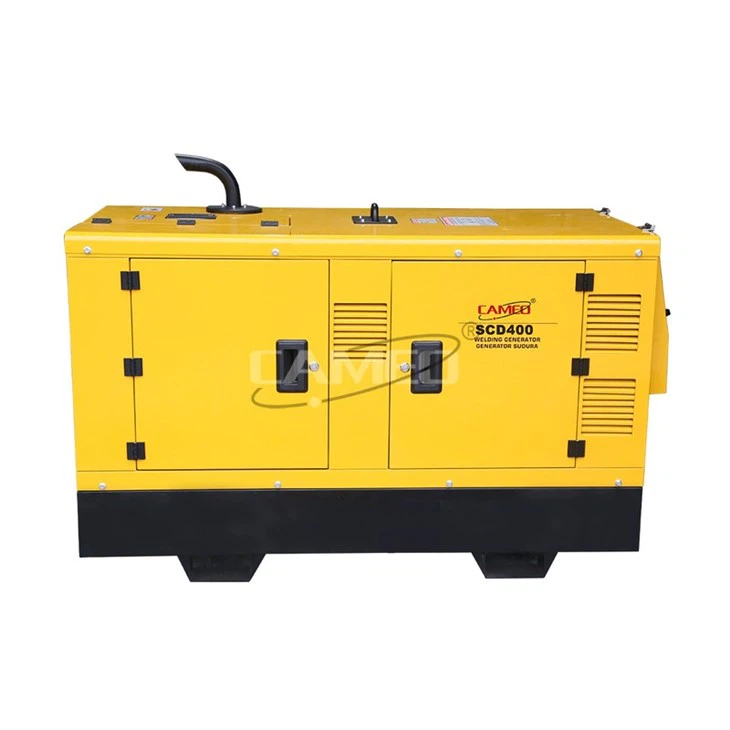

Diesel Engine Driven Welding Machine 250 amp
Model: SCD400
Welding Current(A): 250 *2
Rated power(KW): 20
Max. power(KW): 22
Product Introduction
About this item(SCD400)
Solving outdoor welding problems.
All-in-one diesel engine driven stick welder&AC generator
Welding processes: Mma,Tig,Fcaw,gouging,cellulse welding machine
Generator: 22000 peak watts, 20000 running watts; comes with keychain, electric and recoil start; 85L fuel tank with fuel gauge, running time up to 17 hours. Rated speed (RPM) 1500/1800/3000. THD: ≤ 5%
Welder: 200A/250A rated output current, welding current Range 30-400A;
The generator features 3 standard industrial use AC socket. Powered by Adopting well-known brand(yuchai,uk-perkins, kubota, yanmar ) engine and brushless AC generator drive, it has an automatic low oil shut-off function and a 3-in-1 digital meter, plug and play. The welding module adopts IGBT inverter power system, suitable for all kinds of pipeline arc welding (low hydrogen welding, cellulose welding, argon arc welding)
Accessories include keychain, oil funnel, tool kit and user manual.
All CAMEO portable hair welders are functionally tested at the factory and may contain minimal residual oil and/or fuel odor; meet EU V, CE standards; provide 1 year limited service, labor and parts warranty.
Applicable Industries:Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Restaurant, Home Use, Retail, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company.
|
Model |
SCD400 |
SCD500 |
SCD600 |
SCD800 |
SCD1000 |
|
|
Welding Processes |
Welder A: MMA/ TIG / Fcaw / Gouging / Cellulose |
|||||
|
Welder B: MMA/ TIG / Fcaw / Gouging / Cellulose |
||||||
|
Welding Current(A) |
250 |
300 |
350 |
400 |
500 |
|
|
Duty Cycle(%) |
60/100 |
60/100 |
60/100 |
60/100 |
60/100 |
|
|
V-a Curve |
|
Drooping |
Drooping |
Drooping |
Drooping |
|
|
Rated power(KW) |
20 |
25 |
30 |
40 |
50 |
|
|
Max. power(KW) |
22 |
27.5 |
33 |
44 |
55 |
|
|
Engine |
Yanmar 4TNV88 | Kubota V3300 | Yuchai 4D24TG | WP2.3D48 |
1103A-33TG2 |
|
|
Frequency(Hz) |
50/60 | 50/60 | 50/60 | 50/60 |
50/60 |
|
|
Fuel |
Diesel |
Diesel |
Diesel |
Diesel |
Diesel |
|
|
Fuel Consumption(L/h) |
5 |
6.2 |
7 |
10 |
10 |
|
|
Dimensions(mm) |
1680*820*1010 |
1820*940*1080 |
1820*940*1080 |
1900*1000*1100 |
2150*1150*1150 |
|
|
N.W/G.W(KG) |
700/760 |
750/810 |
800/860 |
1150/1250 |
1300/1400 |
|
|
Loading Q'TY(20GP/40HQ) |
12/26 |
12/26 |
12/26 |
10/22 |
10/22 |
|
