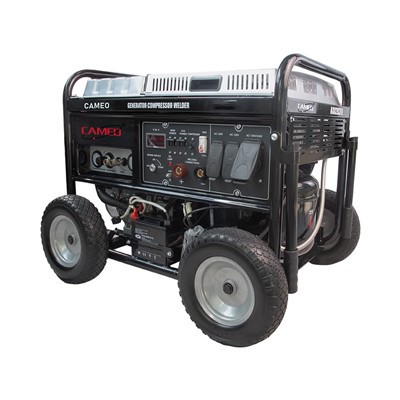

4 in 1 Engine Driven Welder & Generator & Air Compression & LED Lighting

About this item(SC200BF)
4-in-1 generator and welding machine, air compression, Lighting,Solve outdoor welding and Lighting.
Gasoline engine driven stick welder&AC generator&air compression&Lighting
Generator: 5500 peak watts, 5000 running watts; comes with keychain, electric and recoil start; 20L fuel tank with fuel gauge, running time up to 9.5 hours. Rated speed (RPM) 3600. THD: ≤ 3%
Air compression:Oil free direct air compressor,20L air compression tank,Pressure range0.6-0.8Mpa; Flow 100L/min.
Welder: 180A rated output current, welding current Range 50-200A; electrode range 1.6-4mm.
Lighting: 4x100w LED lights can lift to 4.5m high by operation.
The generator features 1 standard household AC socket. Powered by a 420cc four-stroke engine, it has an automatic low oil shut-off function and a 3-in-1 digital meter,plug and play.
The welding module adopts IGBT inverter power system, suitable for mild steel, cast iron, stainless steel and hard surfaces.
Accessories include keychain, oil funnel, tool kit and user manual.
All CAMEO portable hair welders are functionally tested at the factory and may contain minimal residual oil and/or fuel odor; meet EPA, EU V, CE standards; provide 1 year limited service, labor and parts warranty.
Applicable Industries:Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Restaurant, Home Use, Retail, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company.

Type		multi functional product 3 in 1		multi functional product 4 in 1
Product picture		​
Model		SC200BS	SCD200A	SC200BF-1	SC200BF-2
Welding	Load Duration	60%	35%	60%	60%
	OCV	DC 75V	DC 75V	DC 75V	DC 75V
	Current range(A)	130/180	40A-160A	50A-200A	50A-160A
	Welding voltage(V)	22-28V	22-28V	22-28V	22-28V
	Welding rod	1.6-4.0mm	2.5-3.2	1.6-4.0mm	1.6-4.0mm
Generator	Rated current/voltage(A/V)	160A/27.2V	21.6-26.4V	180A/27.2V	150A/26V
	Auxiliary rated power output	4.5kW	6kW	5kW	7kW
	Max.power output	5kW	6.5kW	5.5kW	7.5KW
	Rated frequency	50Hz/60Hz	50Hz/60Hz	50Hz/60Hz	50Hz/60Hz
Air compressor	Capacity(L)	17L	/	2*10L	/
	Flow	100L/min	/	100L/min	/
	Pressure range	0.6-0.8Mpa	/	0.6-0.8Mpa	/
Engine	Engine model	SC420/CH440	SV320BA	SC420/CH440	SC420/CH440
	Max.power/speed(RPM)	8.2kw/3600rpm	3600rpm	14HP/3600rpm	14HP/3600rpm
	Displacement(cc)	420cc/429cc	322cc	420cc/429cc	420cc/429cc
	Start method	Recoil/E-start	E-start	Recoil/E-start	Recoil/E-start
Whole set	Fuel tank capacity(L)	30	12.5	30	30
	Protection class	IP21S	IP21S	IP21S	IP21S
	Dimension(mm)	860*600*800	770*500*525	860*615*930	800*620*990
	Net weight(kg)	120	130	160	158
Cutting	Current Range(A)	/	10-40	/	10-40
	Cutter Plate Thickness(mm)	/	1-10	/	1-10
Lighting	Lighting(W)	/	/	LED 4X100	/
	Lighting height (m)	/	/	3.5m	/
