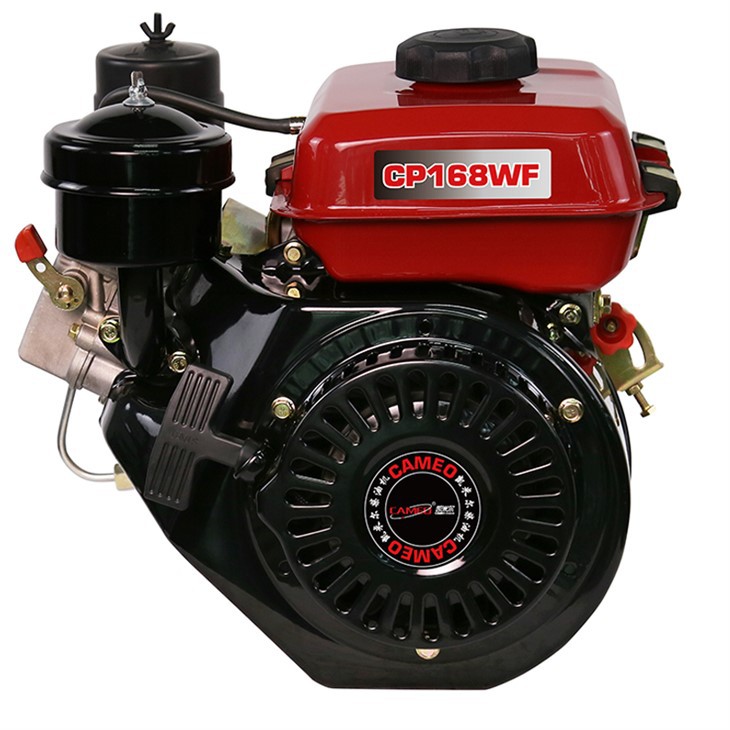

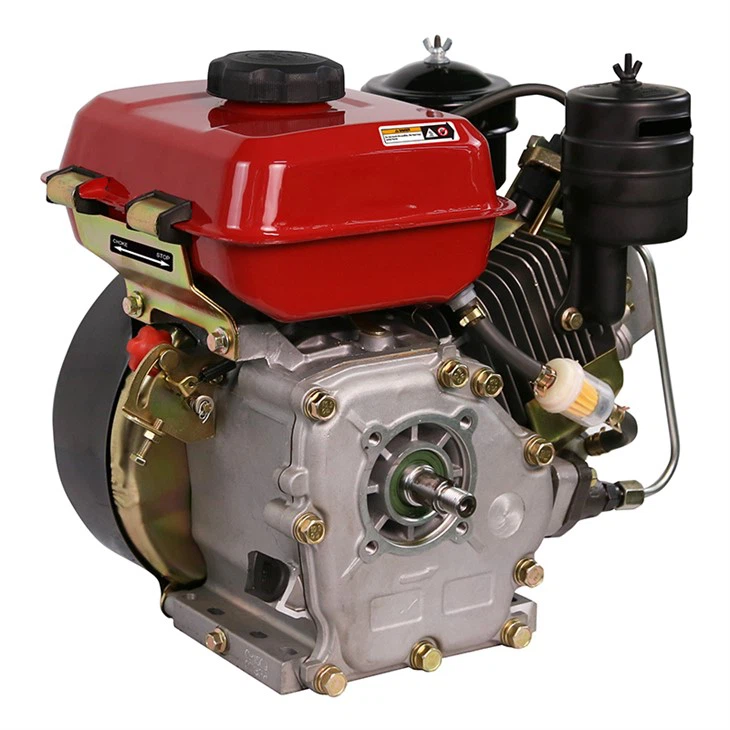

168F Diesel Engine

Model: CP168WF
Type: Single cylinder/ 4 stroke/ air cooled/ Direct injection
Bore*stroke: 68*54
Rated output(hp): 3

Product Introduction

vertical shaft 5hp Air Cooled Diesel Engine

specification

Model

CP168WF

CP1103F/CP1103FE

CP186FA/CP186FAE

Type

Single cylinder/ 4 stroke/ air cooled/ Direct injection

Combustion system

Vortex chamber type

Direct injection

Direct injection

Bore*stroke

68*54

103*88

86*72

Rated output(hp)

3

15

8

Starting system

Recoil/Electric

Fuel/lubrication

0# diesel fuel(summer), 10# diesel fuel(winter)/SAE 10W/30

Fuel capacity(L)

3.0

5.5

5.5

Lubrication capacity(L)

0.7

2.0

1.65

N.W/G.W(kg)

20/22

56/62

48/50

Dimension(mm)

430*385*410

510*510*590

520*450*560

Loading QTY

(20GP/40HQ)

426/1250

132/276

228/415

Product Description



machinery 5hp Air Cooled Diesel Engine

China Factory 5hp Air Cooled Diesel Engine

Introduction

168F diesel engine is mainly used for diesel water pumps, and one of the biggest benefits of diesel power water pumps is their ability to handle large amounts of water. With high capacity pumping, they can easily transport a large amount of water to distant places, even uphill. They can also operate continuously for long periods of time without the need for frequent maintenance.

Diesel engine as the main power source of agricultural machinery, its working performance is good or bad, directly affects the economic performance and power performance of agricultural machinery, so in the process of use, daily maintenance is very important.

Check the diesel engine frame screws and each part of the connection fastening. When the diesel engine is found to have pendulum instability, special attention should be paid to the fastening of the diesel engine mounting pad and fixing bolts
