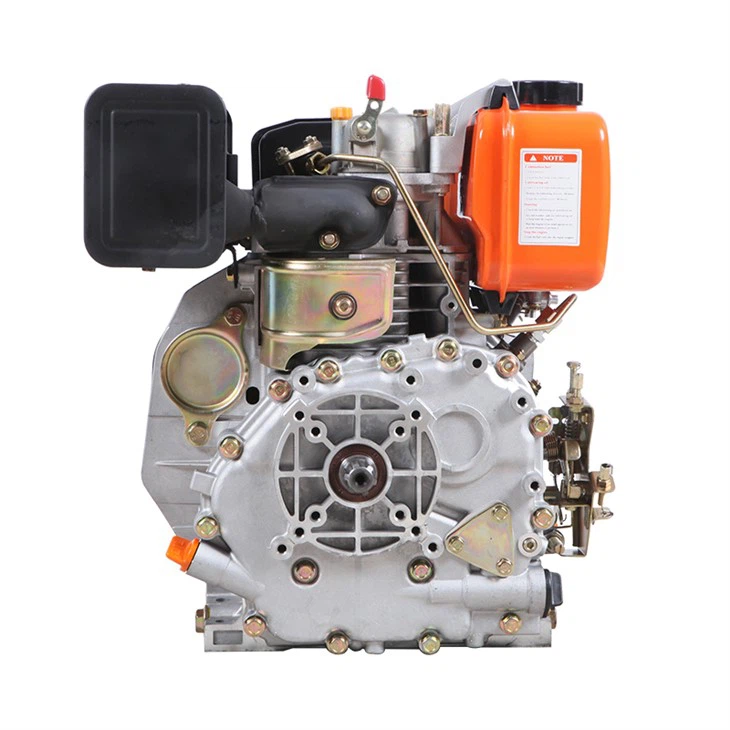

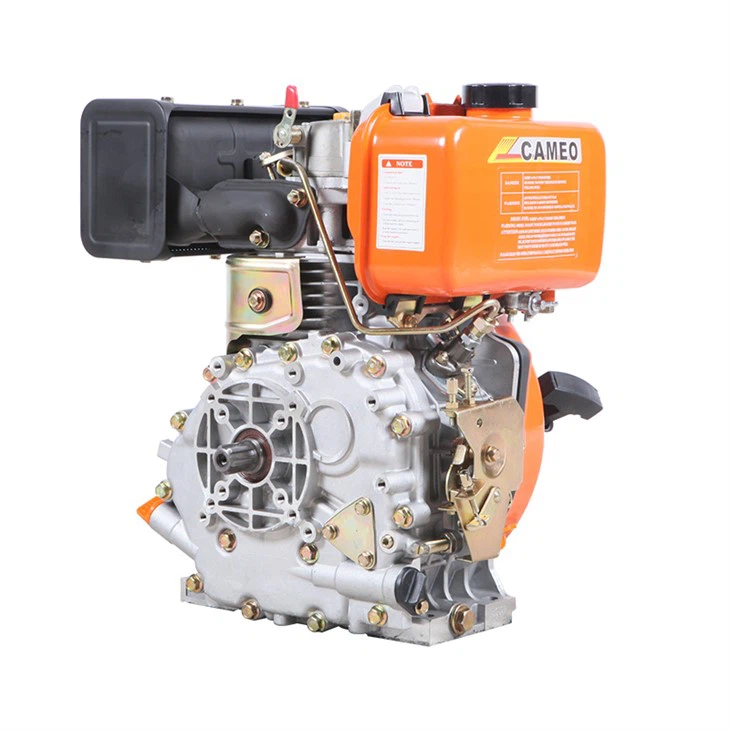

Single Cylinder Diesel Engine
Model: CP186FA
Type: Single cylinder/ 4 stroke/ air cooled/ Direct injection
Displacement(cc): 406
Rated output(hp): 8
Product Introduction


|
Model |
CP168WF |
CP186FA/CP186FAE |
CP188F/CP188FE |
|
Type |
Single cylinder/ 4 stroke/ air cooled/ Direct injection |
||
|
Combustion system |
Vortex chamber type |
Direct injection |
Direct injection |
|
Bore*stroke |
68*54 |
86*72 |
88*75 |
|
Displacement(cc) |
196 |
406 |
418 |
|
Rated output(hp) |
3 |
8 |
9 |
|
Starting system |
Recoil/Electric |
||
|
Fuel/lubrication |
0# diesel fuel(summer), 10# diesel fuel(winter)/SAE 10W/30 |
||
|
Fuel capacity(L) |
3.0 |
5.5 |
5.5 |
|
Lubrication capacity(L) |
0.7 |
2.0 |
2.0 |
|
N.W/G.W(kg) |
20/22 |
59/61 |
59/61 |
|
Dimension(mm) |
430*385*410 |
520*450*560 |
520*450*560 |
|
Loading QTY (20GP/40HQ) |
426/1250 |
228/415 |
228/415 |




Cameo single cylinder diesel engine is a compact internal combustion engine that operates on the principles of compression ignition. Unlike gasoline engines, which use spark plugs to ignite a fuel-air mixture, diesel engines rely on compressing the air within the cylinder until it reaches a temperature high enough to ignite the injected diesel fuel spontaneously.
Product Advantage
1. Long Service Intervals: Diesel engines typically have longer service intervals compared to gasoline engines, reducing downtime for maintenance and increasing overall productivity.
2. Environmental Benefits: Single-cylinder diesel engines can be designed to meet stringent emissions regulations, making them environmentally friendly options. They produce fewer carbon emissions and are often more fuel-efficient than their gasoline counterparts.
3. Simplicity and Cost-Effectiveness: Single-cylinder diesel engines are relatively simple in design, consisting of fewer parts compared to multi-cylinder engines. This simplicity not only reduces manufacturing costs but also makes maintenance and repair more affordable.

In alignment with our core principle of"Customer First"and our unwavering commitment to delivering the"Highest Quality"products, Chongqing Camel Power Machinery Co., Ltd. Has seamlessly integrated the industry's premium supply system. Our relentless dedication is to offer our valued customers an extensive range of products and services, including"Cameo"single and multi-cylinder Diesel engines, Diesel Generators, Welding Generators, Diesel Water Pumps, Inverter Welding Machines, and Engine-driven multi-functional machinery.
